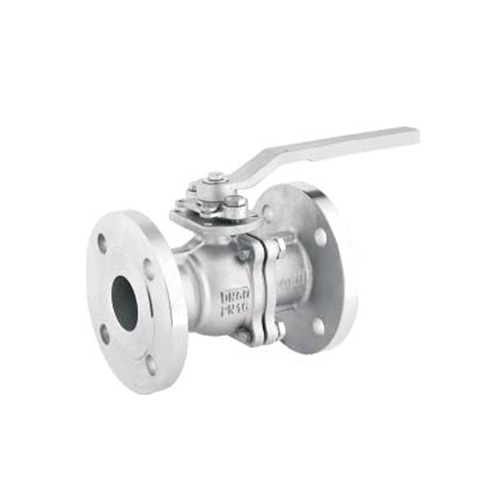

二片式国标低平台法兰球阀

二片式国标低平台法兰球阀

特点 Features

全通径 Full port,1/2*-6*(DN15~DN150)

工作压力W.P.:PN16/40

工作温度W.T.:-20℃-180℃

精密铸造 Investment casting

阀杆防爆出装置设计Blow- out proof stem

防静电装置(可选)Anti- static device(option)

设计标准 Design:GB/T12237

法兰标准 Flange dimension:HG/T20592

结构长度 Face to face:GB/T12221

检验&测试 Inspection& testing:GB/T13927,JB/T9092


0.00
0.00

商品描述

特点 Features

全通径 Full port,1/2*-6*(DN15~DN150)

工作压力W.P.:PN16/40

工作温度W.T.:-20℃-180℃

精密铸造 Investment casting

阀杆防爆出装置设计Blow- out proof stem

防静电装置(可选)Anti- static device(option)

设计标准 Design:GB/T12237

法兰标准 Flange dimension:HG/T20592

结构长度 Face to face:GB/T12221

检验&测试 Inspection& testing:GB/T13927,JB/T9092



>
>
>
>
>
>
>
>
>
